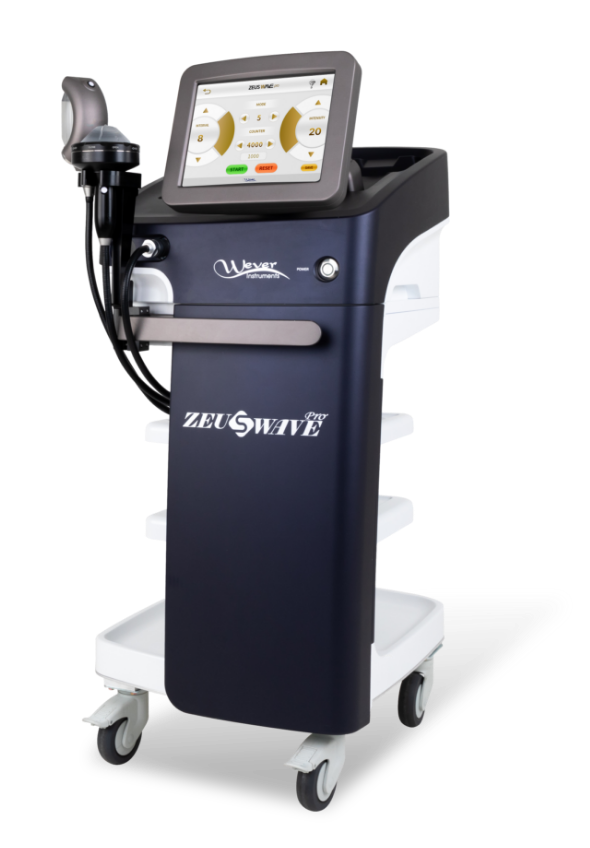

ZEUS WAVE PRO
The New & Innovative E.S.W.T. Device
This Zeus Wave Pro is a complex pain management treatment system that
maximizes the treatment and regenerative effects of musculoskeletal
pain by
newly applying the next-generation double-layer & linear focus
extracorporeal
shock wave (ESWT) technology.
Principle
The principle of the Piezo Shock Wave is that a FSWT (Focused Shock Wave Therapy) is generated when a high-voltage pulse is applied to a piezo element for a short period.
Piezo shock wave technology is known for its exceptional durability and safety. Piezo shock wave therapy sources are available with single layer or double layer technology according to the energy levels required.
The Linear Focused Piezo Shock Wave an innovative approach to shock wave therapy.
The goal was to make the application of focused shock wave fasters, more uniform and more effective and did it. Gel pads are used to adjust the penetration depth to depths of between 0~20mm and optimally adapt the acoustic field to treat more extended areas with larger treatment volumes.
Features

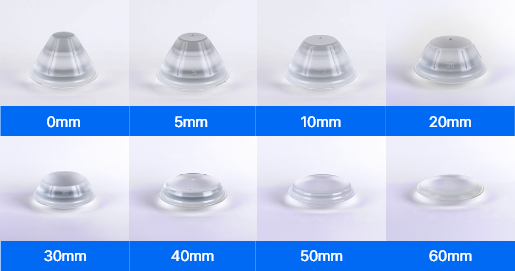

The handpiece that arranges piezo elements in double-layer structure to deliver more detailed and deeper shock waves than a single-layer method.
* The treatment depth is freely adjusted with 8 gel pads

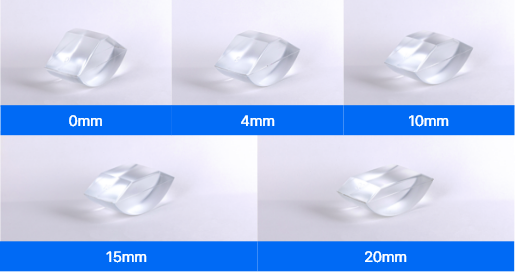

The handpiece with advanced technology that can effectively transfer lots of shock wave energy over a wider range with a linear focused rather than a point-type focused method.
* The treatment depth is freely adjusted with 5 gel pads

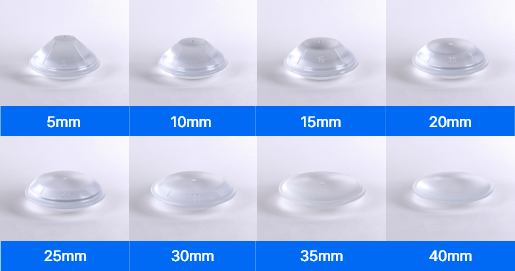

The handpiece that basic single-layer type suitable for users who want to use a reasonable product with the same specifications as the previous version.
* The treatment depth is freely adjusted with 8 gel pads

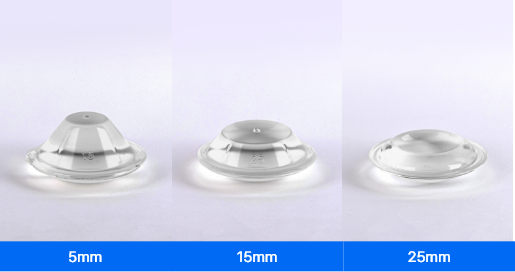

The handpiece that has reduced weight in consideration of convenience compared to other handpieces, and is suitable for users who have difficulty using heavy handpieces.
* The treatment depth is freely adjusted with 3 gel pads

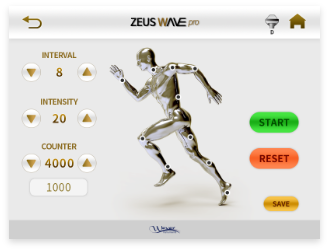

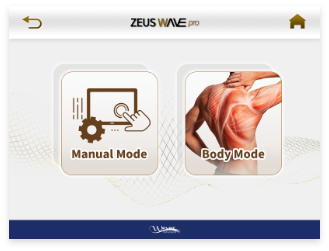

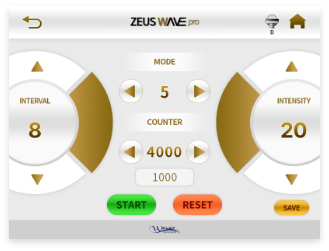

The intuitive UI allows easier and simpler treatment and provides an appropriate treatment mode for each treatment area.
Application
site
Calcific Tendinitis
Tennis / Golfer’s Elbow
Fascia Lata
Patellar Tendinitis
Achilles Tendinitis
Plantar Fasciitis

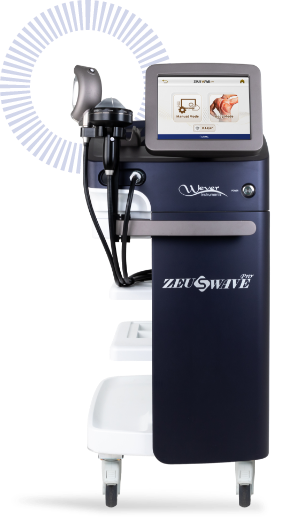

Specifications
| Rated Power | 100~240V |
|---|---|
| Rated Frequency | 50/60Hz |
| Power Consumption | 110VA |
| Pulse Frequency | 1~20Hz |
| Intensity Level | 0.5~23 Level |
| Energy Flux Density | 113mJ/mm²(Max.)±20% |
| Peak Pressure | 88.38MPa(Max.)±20% |
| Penetration Depth | 60mm(Max.)±20% |
| Dimension | 520 * 620 * 1200(mm) |
| Weight | 58kg |
