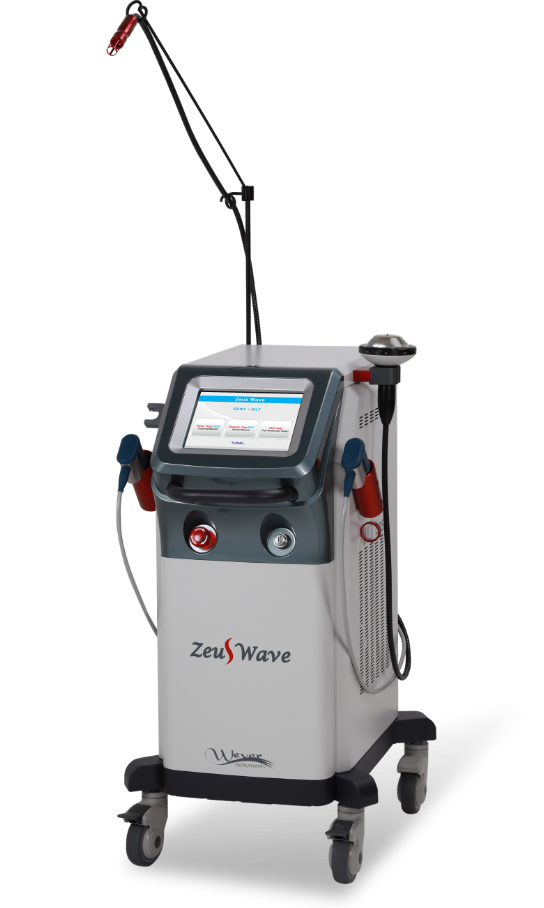

ZEUS WAVE
Extracorporeal Shock Wave Therapy (E.S.W.T.) Device
The Zeus Wave is the best non-surgical and non-invasive medical device for musculoskeletal
pain relief via Integrating Piezo and Pneumatic. Extracorporeal shock wave therapy(ESWT) is
one of the few proven medical techniques that can safely treat, in a non-surgical way, chronic
pain syndromes in the musculoskeletal system.
Principle
ESWT
- ESWT are concentrated and transmitted to the target tissue at the point of pain. Shock waves also promote blood circulation and metabolism in the affected area.
The main medical principle that extracorporeal shock waves affect biological tissues is based on the biochemical or biomolecular conversion and transfer of mechanical stimuli into tissues of the human body.
HILT
- HILT(High Intensity Laser Therapy) The High-Intensity Laser can stimulate tissue growth and cell regeneration in the body and can achieve the maximum therapeutic effect without side effects by precisely and delicately controlling its effects to only the damaged area.
- The ESWT machine is an innovative and non-invasive solution for chronic musculoskeletal pain.
- ESWT is used in physiotherapy, orthopedics, and sports medicine and is mainly used for the treatment of muscle- and
tendon-related chronic diseases, muscle- and tendon-related diseases, calcification, and bone problems. - The HILT machine is a breakthrough technology that has proven its clinical effectiveness based on the principle of
laser therapy that has already been recognized. - The HILT machine is a powerful pain relief device that uses biomedical and photomechanical stimulation to stimulate soft
tissues to prevent tolerance.
Features

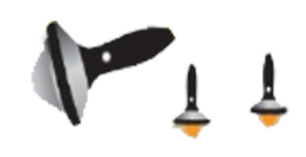

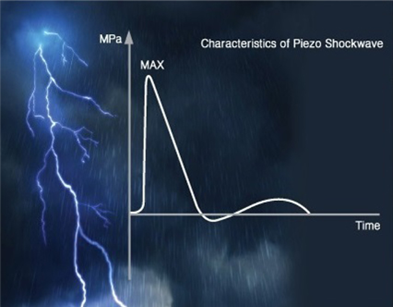

Piezo elements have a geometric structure in a concave shape to generate shock pulses for 1–2 μs when short high-voltage pulses are applied.
Piezo elements are precisely designed so that the generated shock waves can be concentrated at specific points.
This technology provides a precise and sophisticated focus area and provides painless treatment without making noise. The energy can be adjusted freely with little effect on the size of the focus area.
The Radial Shock Wave can output pulses of high energy to facilitate the treatment of various tissues and structures with various pathological and medical conditions.
Through the applicator head, the transmitted kinetic energy generates Radial Shock Waves from the area of contact with the skin to the desired treatment area.

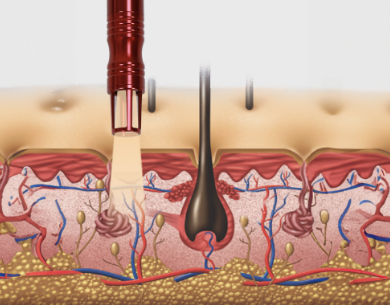

The principle of HILT is that enzymes inside tissue cells absorb energy from laser light when skin tissue cultures are irradiated by the laser. It increases cell regeneration and DNA production and keeps cells healthy and in a high energy state. It not only reduces pain and inflammation but also stimulates nerve regeneration, muscle pain relief, and immune system response.

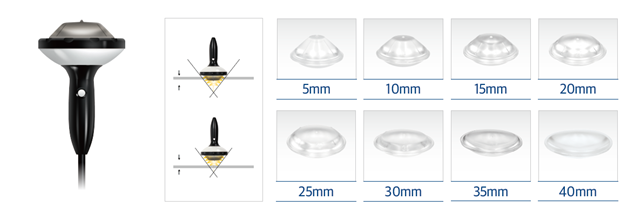

The treatment depth is freely adjusted with 8 gel pads for piezo handpieces.

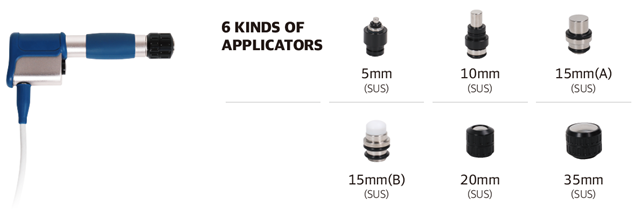

The air gun handpiece provides 6 applicators to use appropriate tips for each treatment area.
Application
site
Calcific Tendinitis
Tennis / Golfer’s Elbow
Fascia Lata
Patellar Tendinitis
Achilles Tendinitis
Plantar Fasciitis

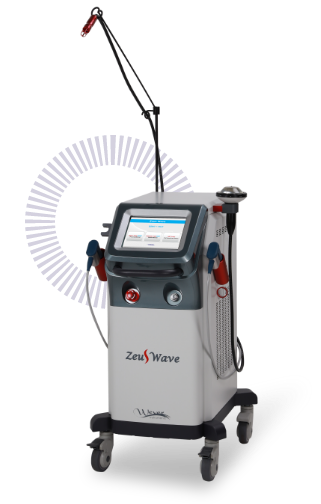

Specifications
| Rated Power | AC 200~240V |
|---|---|
| Rated Frequency | 50/60Hz |
| Power Consumption | 1.1kVA |
| Energy Flux Density of Piezo-type (Max.) | 0.702 mJ/mm² ±15% |
| Penetration Depth of Piezo-type (Max.) | 40 mm ±20% |
| Focusing Size of Piezo-type (Max.) | 1.78 × 1.78 × 15.81 mm ±20% |
| Dimension | 500(W) × 720(D) × 980(H) mm |
| Weight | about 70 kg (about 35.2 pounds) |
