ZEUS WAVE

---

Extracorporeal Shock Wave Therapy [ESWT, Focused type + Radial type] and High-Intensity Laser Therapy [HILT] are implemented simultaneously!


Zeus Wave Integrated pain - treatment system (ESWT+HILT)

The Zeus Wave is the best non-surgical and non-invasive treatment method for pain relief and tissue regeneration, integrating ESWT and HILT.

Extracorporeal Shock Wave Therapy (ESWT) is one of the few proven medical techniques that can safely treat, in a non-surgical way, chronic pain syndromes in the musculoskeletal system, on which traditional pain treatment had not shown a great effect. ESWT is a non-invasive procedure for the treatment of acute and chronic pain in the musculoskeletal system.

The shock waves used in ESWT are concentrated and transmitted to the target tissue at the point of pain. Shock waves also promote blood circulation and metabolism in the affected area. The main medical principle that extracorporeal shock waves affect biological tissues is based on the biochemical or biomolecular conversion and transfer of mechanical stimuli into tissues of the human body.

Musculoskeletal pain is one of the most common pain disorders that have a major impact on human life.

Most are caused by enthesopathy, such as tennis elbow, plantar fasciitis, and shoulder joint calcifications, and are increasingly diagnosed as a major cause of chronic pain.

ESWT has been recognized as a useful method for the treatment of numerous acute and chronic pain syndromes in the musculoskeletal system.

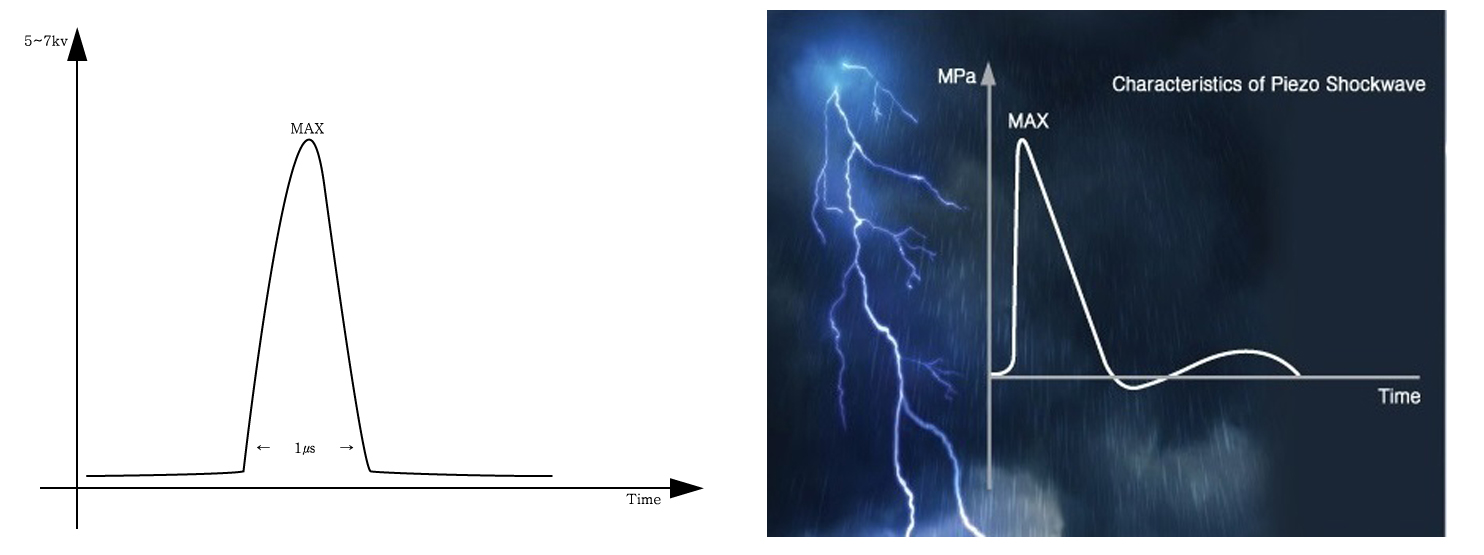

The principle of the Piezo-Shock Wave is that a Focused Shock Wave is generated when a high-voltage (5㎸–7㎸) pulse is applied to a piezo element for a short period (1–2 μs). After the Shock wave sharply rises, it drops exponentially and shows a short negative pressure.

Piezo elements have a geometric structure in a concave shape to generate shock pulses for 1–2 μs when short high-voltage pulses are applied. Piezo elements are precisely designed so that the generated shock waves can be concentrated at specific points. This technology provides a precise and sophisticated focus area and provides painless treatment without making noise. The energy can be adjusted freely with little effect on the size of the focus area.

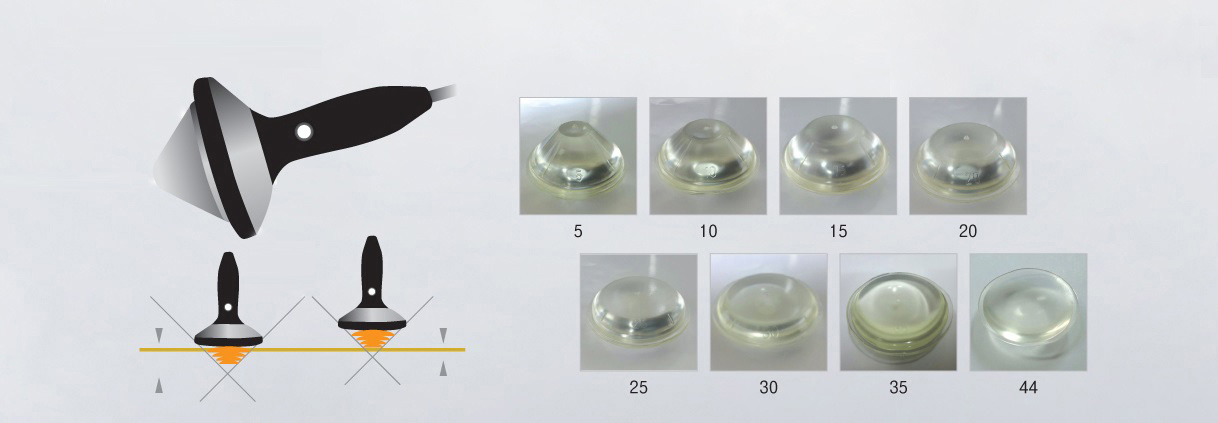

It transmits the Piezo-Shockwave and adjusts the shock penetration depth.
There are eight kinds of penetration depth ranging from 5 mm to 40 mm, making it possible to provide treatment according to the depth of the human body.

Our company’s handpieces are excellent in durability and treatment effect with their focused-type method.

The Radial Shock Wave can output pulses of high energy to facilitate the treatment of various tissues and structures with various pathological and medical conditions. Through the applicator head, the transmitted kinetic energy generates Radial Shock Waves from the area of contact with the skin to the desired treatment area.

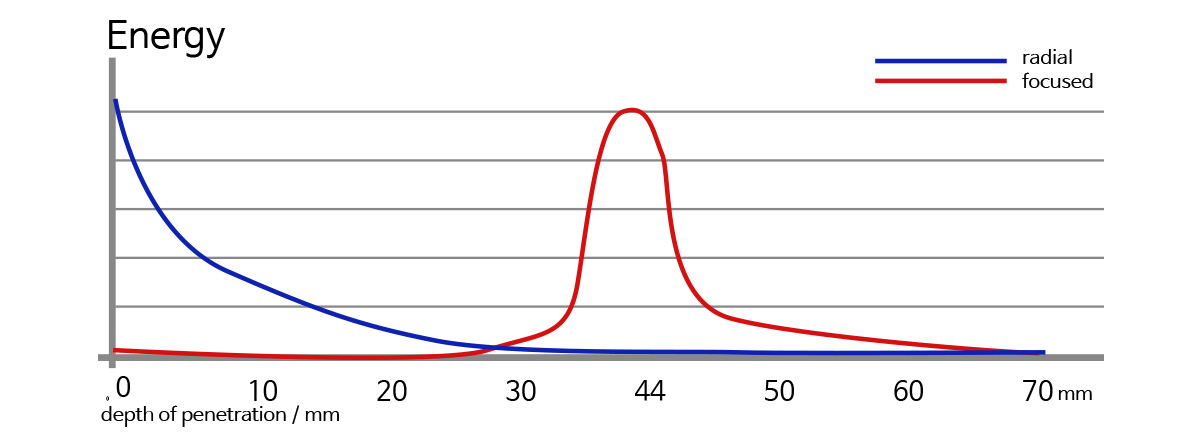

Combining a Focused Shock Wave and a Radial Shock wave integrates the advantages of both technologies. Focused Shock Waves can be used to cure tendon inflammations in painfully indurated areas of the muscles (pain points) andother layers.

Radial Shock Waves relax the muscle and connective tissues (cell epilepsy).
[Application of Focused Shock Wave]
When treating enthesopathies (tendon, bone)
When breaking up calcium deposits
When identifying the location of the pain spots with the pain triggers that cause synalgia
When treating superficial pain trigger points/pain points and profundus pain trigger points/pain points


[Application of Radial Shock Wave]
When smoothing muscle tissue
When relaxing muscular tension (tight band)
When locating and treating superficial pain trigger points
When treating a wide area
When activating connective tissues (cell epilepsy)

The High-Intensity Laser can stimulate tissue growth and cell regeneration in the body and can achieve the maximum therapeutic effect without side effects by precisely and delicately controlling its effects to only the damaged area.

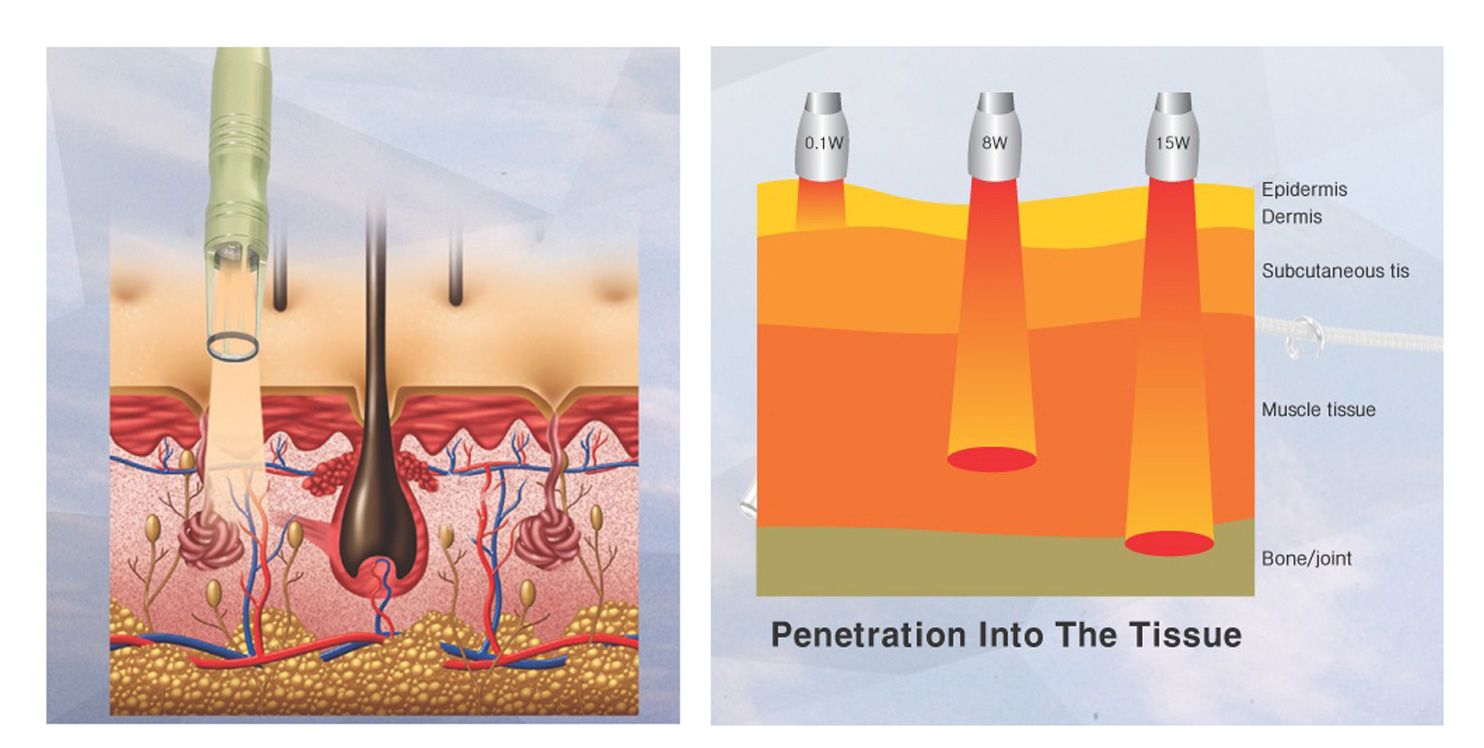

The principle of HILT is that enzymes inside tissue cells absorb energy from laser light when skin tissue cultures are irradiated by the laser. It increases cell regeneration and DNA production and keeps cells healthy and in a high energy state. It not only reduces pain and inflammation but also stimulates nerve regeneration, muscle pain relief, and immune system response.

Immediate pain treatment that is strong and long-lasting (application site)
Shoulder stiffness: Impingement syndrome, tendonitis, rotator cuff injury
Tennis Elbow/Golf Elbow Gonarthritis: Osteoarthritis, Rheumatism
Ankle sprain/Cervical sprain, Plantar fasciitis
Back ache: Arthritis, Muscle cramp

The ESWT machine is an innovative and non-invasive solution for chronic musculoskeletal pain. ESWT is used in physiotherapy, orthopedics, and sports medicine and is mainly used for the treatment of muscle- and tendon-related chronic diseases, muscle- and tendon-related diseases, calcification, and bone problems.
The HILT machine is a breakthrough technology that has proven its clinical effectiveness based on the principle of laser therapy that has already been recognized. The HILT machine is a powerful pain relief device that uses biomedical and photomechanical stimulation to stimulate soft tissues to prevent tolerance.

Convenience of Zeus Wave

1. Electrical rating specifications

- Rated power: AC220V
- Rated frequency: 60Hz
- Power consumption: 700VA


2. Easy operation and use of touchscreen

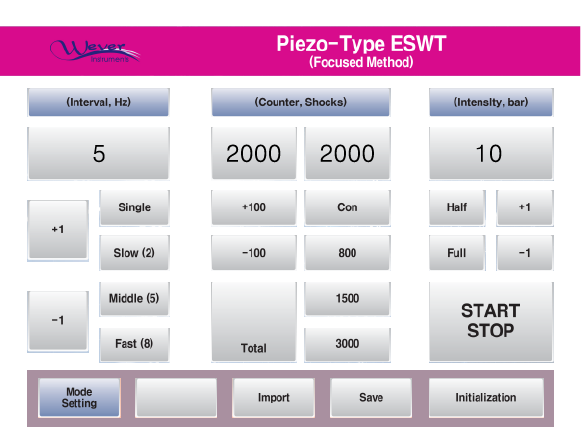

(1) Piezo-type extracorporeal shock wave
1) Configuration of shock wave frequency (speed): 1-8㎐, 8 steps
2) Accurate setting of operating times: 1000-7000 impulses
3) Penetration depth of shock wave: 5-44mm (using 8 advanced elastomeric pads)

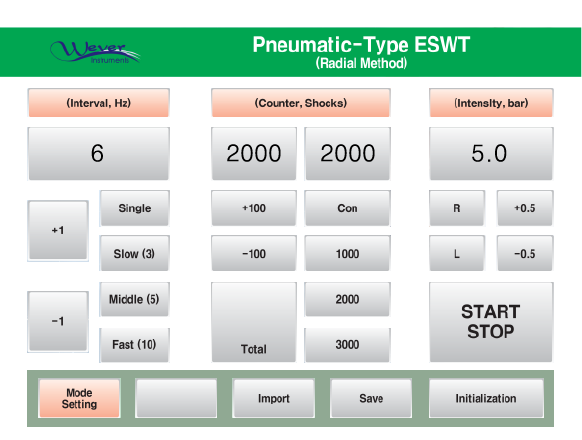

(2) Pneumatic-type extracorporeal shock wave
1) Maximum pneumatic pressure: 0.5-7.0 bar
2) Configuration of shock wave cycle (frequency): 1-10㎐, 10 steps
3) Accurate setting of operating times: 1000-10000 impulses

3. Safety

Extracorporeal shock wave therapy (ESWT) and high-intensity laser therapy (HILT) have been used for decades in medically advanced countries around the world. According to all clinical data and relevant literature, they have had no side effect or serious damage when used with full understanding of how to use. Therefore, it is all the more important to study carefully and follow the instructions and cautions for use of this product when administering treatment.

(1) Emergency stop button (power off)
(2) High-intensity laser therapy (HILT) interlock
(3) Easy key switch
